HiSport Throttle Position Sensor Compatible with Polaris Ranger 500/570,RZR 570 800,Sportsman 500/550/570 4x4 HO 2006-2016 Replace 3131705 3140173
Quantité:
Prévention de la fraude : votre paiement est sûr et sécurisé.
Prévention de la fraude : votre paiement est sûr et sécurisé.

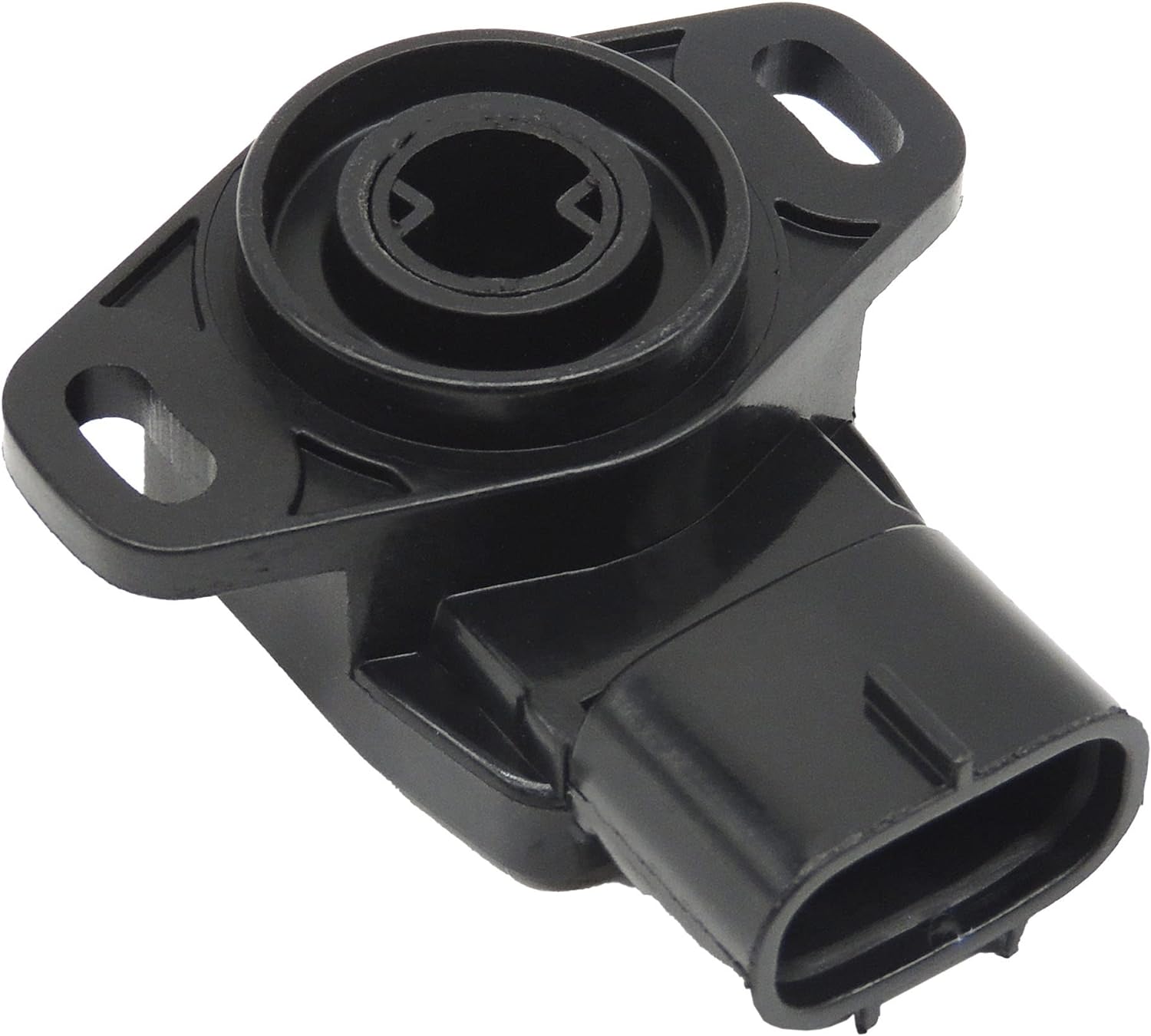

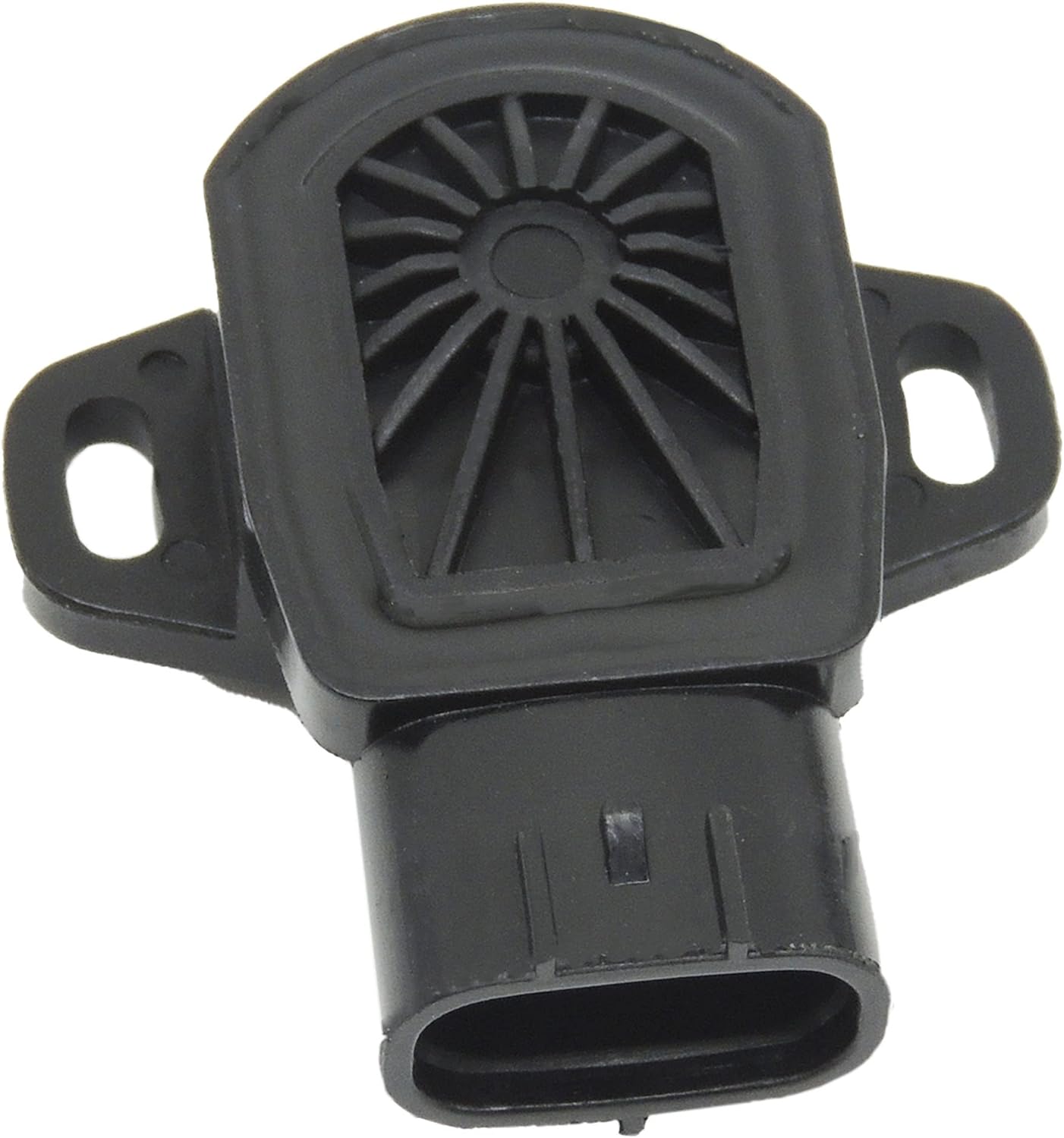

HiSport Throttle Position Sensor
- 3131705
- 3140173
THE ERROR CODE:
- P0120: Throttle Position Sensor/Switch A Circuit Malfunction – the voltage goes higher or lower than normal, or stutters in comparison to the “B” sensor.
- P0121: Throttle Position Sensor/Switch A Circuit Range/Performance Problem – the throttle angle doesn’t match the value expected for a specific RPM.
- P0122: Throttle Position Sensor/Switch A Circuit Low Input.
- P0123: Throttle Position Sensor/Switch A Circuit High Input – the voltage exceeds normal values.
- P0124: Throttle Pedal Position Sensor/Switch (TPS) A Circuit Intermittent – the sensor sends a number of intermittent or erratic signals within a set period
Symptoms of a Faulty Throttle Position Sensor
- An unexplainable bucking and jerking in the vehicle
- Sudden idle surges
- Sudden engine stalling without any apparent reason
- Hesitation while accelerating
- Sudden surges in speed while driving on the highway
- Intermittently flashing of check engine light for no apparent reason
- Difficulties in changing gears
- A drastic drop in fuel economy
How to Test a Throttle Position Sensor
- 1.Use a standard ohmmeter to test a switch and combination type throttle position sensor and a voltmeter to test a throttle position sensor that uses a potentiometer.
- 2.Check the resistance in various accelerator pedal positions, record the resistance
- 3.Compare against values listed as acceptable in a quality car repair manuals to determine whether or not the sensor needs to be replaced.
Is It Worth The Repair?
Some issues are worth fixing while others aren’t. In the case of a bad TPS if your car is relatively new with low miles then it has a long road ahead of it and maybe it is worth your while. Now if your vehicle has existing damages, high mileage, and now mechanical issues then it's best to sell that AS IS to avoid throwing away your hard-earned cash into that money pit.

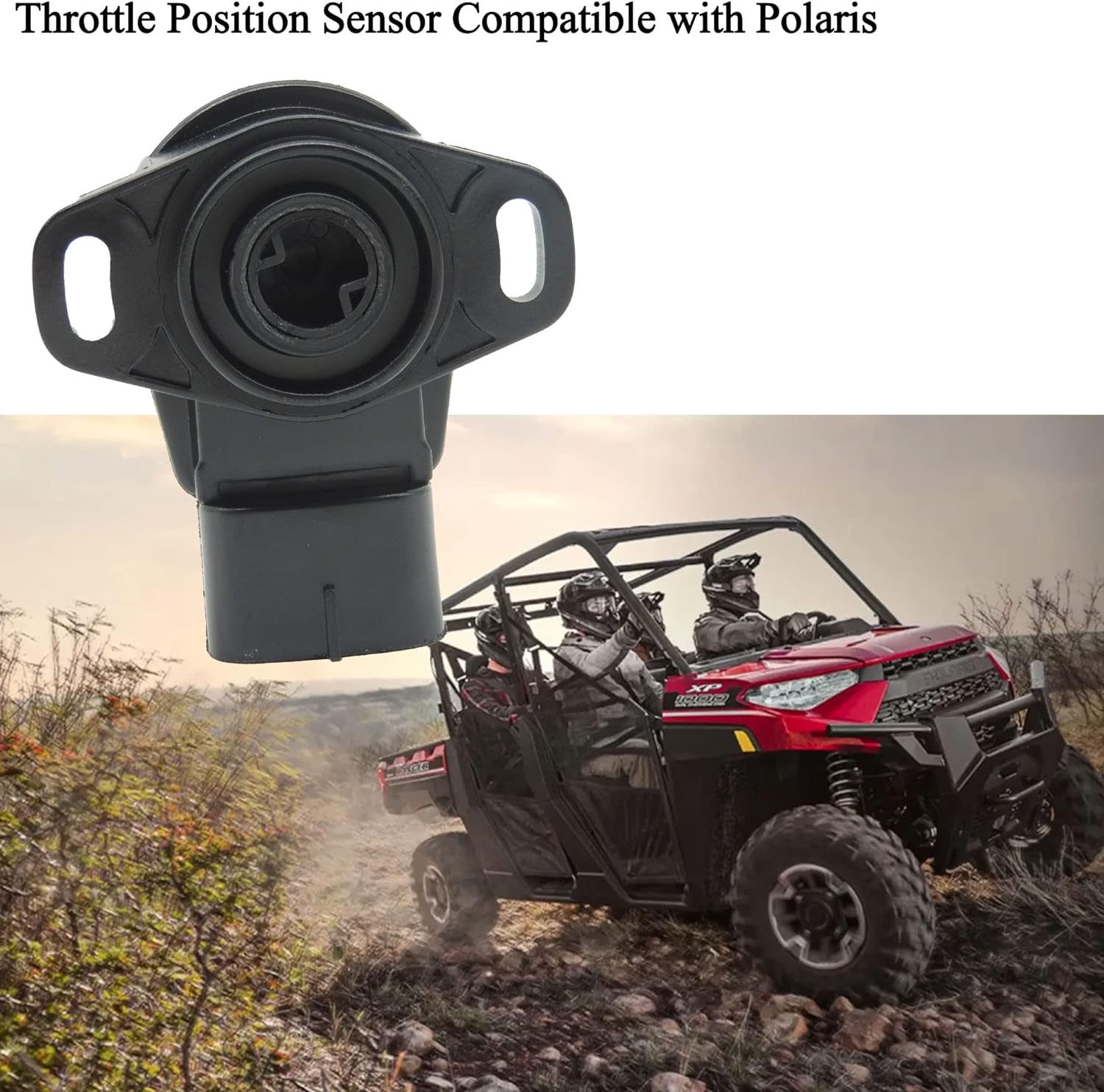

- Fitment - Throttle position sensor Compatible with Polaris Ranger 2006-2013，Ranger Crew 2011-2015,RZR 2012-2016,Polaris Sportsman 570 ACE
- Throttle Position Sensor OEM Part Number - 3131705, 3140173
- Note - The round part on the back is 0.87 inches/ 22mm diisameter, as shown in the picture. 3-pin plug connection, please carefully distinguish it from other sizes.
- Premium Quality Material- Made of high quality ABS plastic and metal. Great durability, wear resistance, and strong connectivity. Each product is strictly inspected before leaving the factory to provide high-quality auto replacement parts.
- MEET OR EXCEED OE STANDARD - HiSport Throttle Position Sensor use Quality Materials , Meets Or Exceeds OE Standards. It Works Better And long-term stable performance.
| Brand | HiSport |
| Material | Acrylonitrile Butadiene Styrene, Metal |
| Style | TPS |
| Mounting Type | Flange Mount |
